How to Choose the Right Miniature Circuit Breaker for Your Needs?

When selecting the appropriate Miniature Circuit Breaker, expertise is essential. John Smith, a renowned electrical engineer, once said, "Choosing the right Miniature Circuit Breaker can save you from unexpected failures." His insight highlights the importance of making informed decisions.

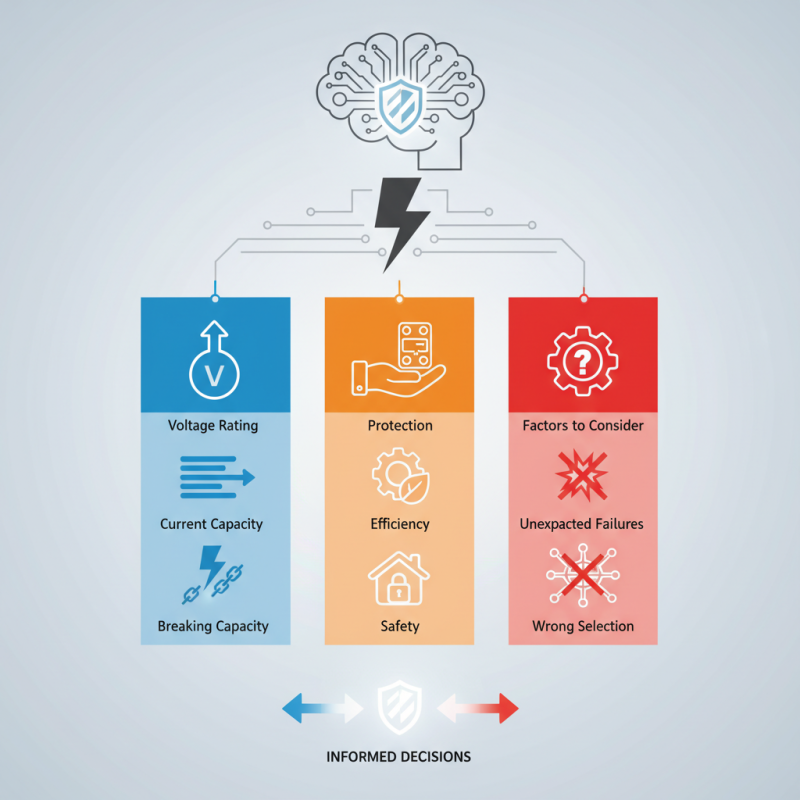

A Miniature Circuit Breaker protects electrical circuits from overloads and short circuits. The right choice ensures safety and efficiency. Factors to consider include voltage rating, current capacity, and breaking capacity. Each detail matters; the wrong selection may lead to disaster.

It is not always straightforward to choose the best Miniature Circuit Breaker. Many factors can be confusing. The range of options can overwhelm. Users often overlook critical specifications. Reflecting on the details can guide better decisions in this vital aspect of electrical safety.

Understanding the Purpose of Miniature Circuit Breakers

Miniature circuit breakers (MCBs) play a crucial role in electrical safety. Their primary purpose is to protect circuits from overload and short circuits. When the current exceeds a set limit, the MCB trips, cutting off the power. This swift response helps prevent wire damage or even fire. Understanding how MCBs function can help you choose the correct one for your needs.

When selecting an MCB, consider the amperage rating. This is essential for protecting appliances and devices. A breaker rated too low may trip frequently, while one rated too high might not protect adequately. It's a balance that requires careful thought.

Tips: Always match the MCB's rating with the load of the circuit. If unsure, consult a professional. It’s better to have an MCB trip occasionally than risk serious damage. Also, pay attention to the type of MCB you choose. Different types cater to different applications and environments. Make sure to evaluate your specific requirements.

Finally, install the MCB correctly. A poorly installed MCB can lead to misfires or failure to trip. Consider regular maintenance checks as well. Remember, even a small oversight can lead to significant issues.

How to Choose the Right Miniature Circuit Breaker for Your Needs? - Understanding the Purpose of Miniature Circuit Breakers

Identifying Your Electrical Load and Requirements

When selecting a miniature circuit breaker (MCB), understanding your electrical load is crucial. Your load refers to the total wattage of devices that will be connected. According to industry reports, an average household in the U.S. has a typical load of about 3,000 to 5,000 watts per circuit. This figure varies significantly based on appliances used, such as heaters, air conditioners, and lighting. It’s vital to calculate your load accurately to prevent overloading your MCB.

Consider using a wattmeter or consulting with a professional for precise measurements. Many underestimate their load, putting devices at risk. The National Electrical Code suggests leaving a safety margin. If your actual load is 2,500 watts, choosing an MCB rated for 3,000 watts could be wise. However, some might oversize their MCB, leading to issues during a fault scenario.

Also, think about the nature of your load. Is it continuous or intermittent? For example, heavy machinery may require a different MCB than lighting circuits. Failure to consider these factors can lead to frequent tripping or even equipment failure. Get familiar with your needs. It’s a step that can prevent significant downtime and costly repairs.

Evaluating Different Types of Miniature Circuit Breakers

Choosing the right miniature circuit breaker (MCB) involves understanding the types available. There are several options to consider. The most common types are B, C, and D curves. Each type responds differently to overloads. Curve B is suitable for residential applications. It trips at low overloads, protecting sensitive devices. Curve C is widely used in commercial settings. It handles moderate overloads and is ideal for machinery. Curve D, though less common, protects large inductive loads.

Consider the electrical load when selecting an MCB. Analyzing your appliances helps prevent future issues. Calculate total current capacity. Too low can lead to frequent tripping. Too high may not protect efficiently. It's essential to reflect on your specific needs. The choice may feel overwhelming. Some installations demand more than one type of MCB. A mixed approach can provide comprehensive protection.

Installation environment matters too. Humidity and temperature affect MCB performance. The ambient conditions can lead to failures if not considered. Additionally, pay attention to their ratings. Make thoughtful decisions, as this equipment plays a crucial role in safety. Don’t overlook the importance of a robust overload protection system. Small miscalculations can have significant consequences. Taking time to evaluate each option ensures a more reliable electrical system.

Assessing Voltage and Current Ratings for Your Application

When selecting a miniature circuit breaker (MCB), it's crucial to assess voltage and current ratings. Proper alignment with electrical demands is vital. Studies indicate that improper ratings cause nearly 30% of circuit failures. MCBs come in various voltage ratings, typically ranging from 120V to 600V in residential applications. Selecting an unsuitable voltage rating can lead to equipment damage. It's essential to match the MCB with the system voltage.

Current ratings also play a pivotal role. Most MCBs offer ratings from 6A to 63A. Understanding your circuit's load requirements is key. For example, a household circuit might need a 16A MCB for reliable protection. An oversized MCB may not trip during a fault, increasing the risk of fire or equipment damage. Data indicates that almost 40% of circuit protection failures come from improperly rated MCBs.

Always consider the electrical load and potential future loads. Applying an MCB with a lower current rating may result in frequent tripping. On the other hand, a higher-rated MCB could lead to severe system failures. Balancing the ratings according to needs requires careful analysis. Regularly reviewing these parameters can help mitigate risks and enhance safety.

Considering Installation and Future Expansion Options

When considering installation and future expansion for your electrical system, it's crucial to select a suitable miniature circuit breaker (MCB). Think about your current usage and future growth. Will you need to add more appliances or lights later? Analyze your power demand carefully. This basic analysis helps you avoid frequent upgrades.

Placement is also essential. MCBs should be accessible for maintenance. Consider whether they will be in a crowded panel or in a more spacious area. Crowded panels can complicate troubleshooting. Other factors include the potential for future expansion. Will space be available for additional MCBs? If your project allows, allow for extra slots in your panel.

Also, remember the ratings. They should match your installation needs. Too high might not protect your circuit effectively. Too low could lead to nuisance tripping. Sometimes, electricians overlook this balance. Reflections on this could save time later. Future needs can be unpredictable, so allow room for flexibility in your design. Always plan with potential growth in mind.
